Division of current in parallel circuit
Electric Circuit Analysis

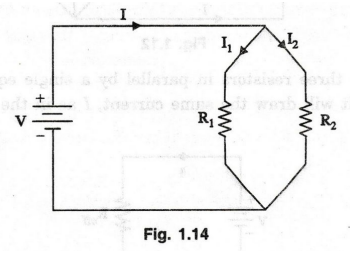

Figure 1.14 shows two resistors R1 and R2 connected in parallel.
DIVISION OF CURRENT IN PARALLEL CIRCUIT
Figure
1.14 shows two resistors R1 and R2 connected in parallel. How does the total
current I divide among the two resistors?
In

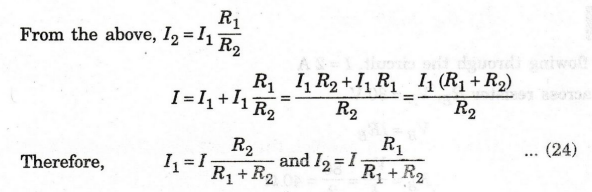

order to obtain the distribution, we write
I
= I1 + I2 and V=I1 R1 = I2
R2
So,
current in a branch is equal to total current multiplied by other branch
resistance and divided by sum of branch resistances.
