DIVISION OF VOLTAGE IN SERIES CIRCUIT

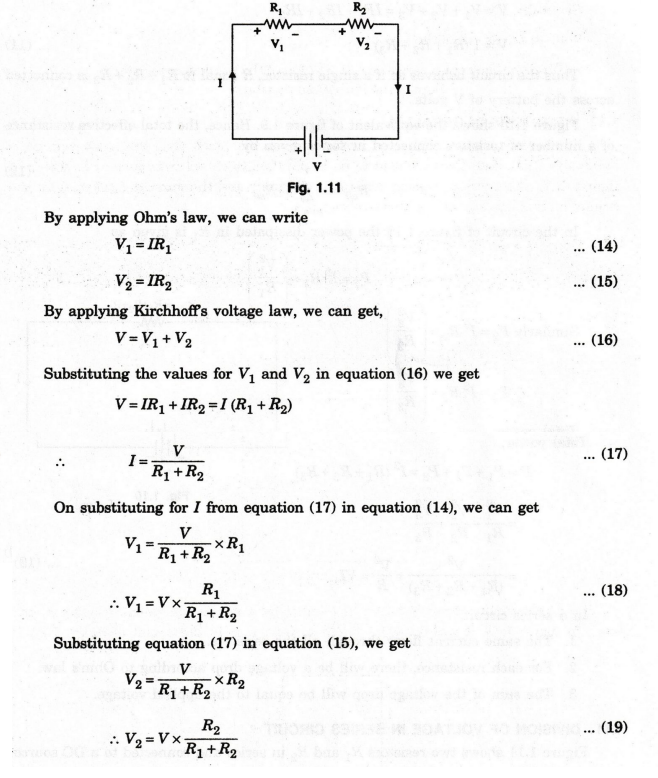

Figure 1.11 shows two resistors R1 and R2 in series and connected to a DC source of V. I is the current flowing through the resistances R1 and R2. V1 and V2 are the voltage drop across R1 and R2 respectively. Here, resistances are in series connection, so the same current I flows through them.


The equations (18, 19) can be used to find out the voltages in series connected resistors in terms of total voltage across the series combination and the values of individual resistors. These equations are called voltage division rule.

Generally,

Voltage across one of the resistors = Total voltage across series circuit × Value of the particular resistor / Sum of the individual resistors
