Electric Circuit Analysis: Chapter - 1: Basic Circuit Analysis - DC
Source Transformation
Statement, Circuit Diagram, Solved Example Problems
If a voltage source has a resistance connected in series, it can be transformed into an equivalent current source with a resistance connected in parallel. It is shown in figure 1.17.
SOURCE TRANSFORMATION
Voltage
Source to Current Source
If
a voltage source has a resistance connected in series, it can be transformed
into an equivalent current source with a resistance connected in parallel. It
is shown in figure 1.17.

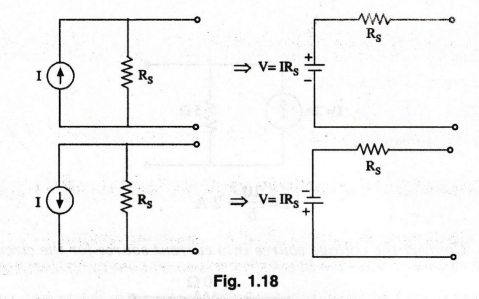

Current
Source to Voltage Source
If
a current source has a resistance connected in parallel, it can be transformed
into an equivalent voltage source with a resistance connected in series. It is
shown in figure 1.18.

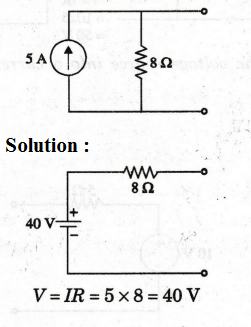

EXAMPLE
73:
Convert into a voltage source.
Solution :
EXAMPLE
74:
Convert the voltage source into a current source for the circuit given
below. (AUDED - May 2008)
Solution
:
EXAMPLE
75:
Convert the voltage source into current source for the circuit given below.

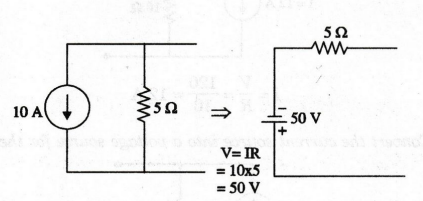

EXAMPLE
76:
Convert the current source into a voltage source for the circuit given
below.
