ADDITIONAL SOLVED PROBLEMS

1. A 3-phase, 440 V supply feeds an unbalanced, delta connected load in which ZRY-20/30°, ZYB = 2020° Q, ZBR = 20-30° Q. Phase sequence is RYB. Determine the readings of two wattmeters which are placed in R and Y lines for measurement of 3 phase power.

Solution:

The phase currents can be expressed in the polar form as below.

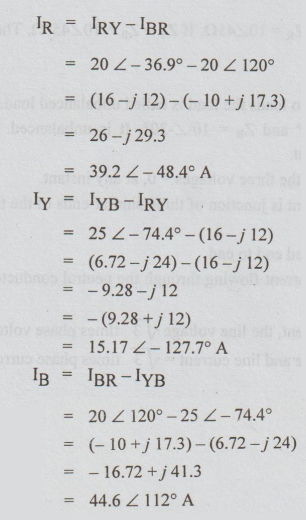

Now, the line currents I_R, I_Y and I_B are calculated by applying KCL as shown below.

Answers:

I_R= 39.2 ∠ -48.4° A

I_Y= 15.17 ∠ -127.7° A

I_B= 44.6 ∠ 112° A
