Methods of Arrangement of Conductors

Methods of Arrangement of Conductors

There are various methods of arranging the conductors over the line supports,

i) Single phase circuits :

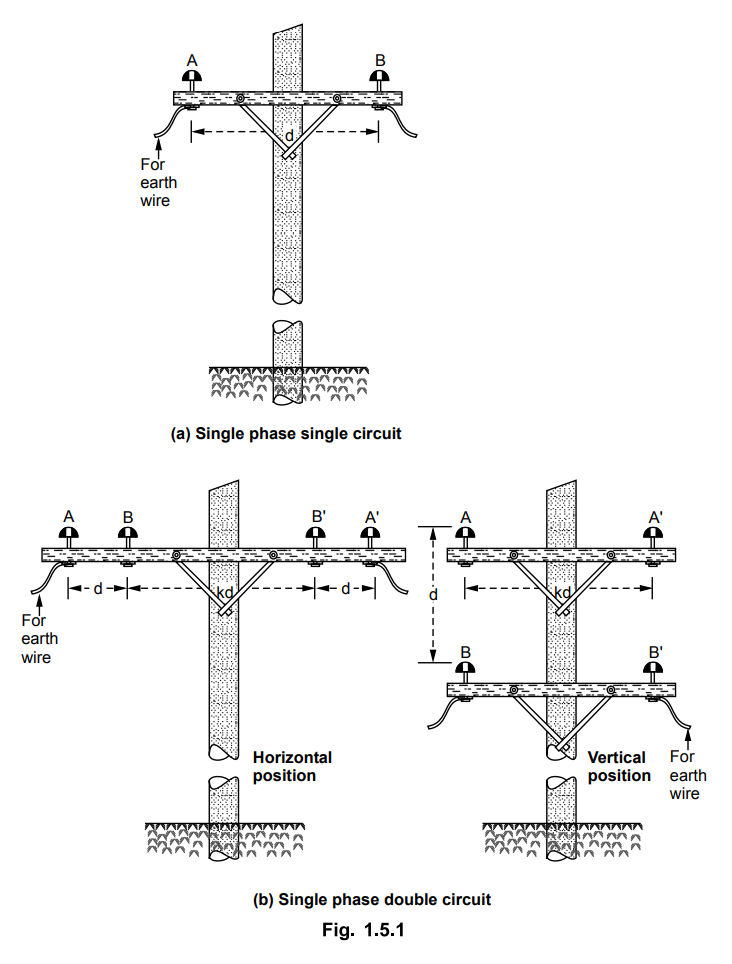

There are two types of arrangements in single phase circuits viz single circuit and double circuit which are respectively shown in the Fig. 1.5.1 (a) and (b). In double circuit there are again two subtypes of arrangements viz horizontal and vertical disposition.

1. Comparison of Single Circuit and Double Circuit

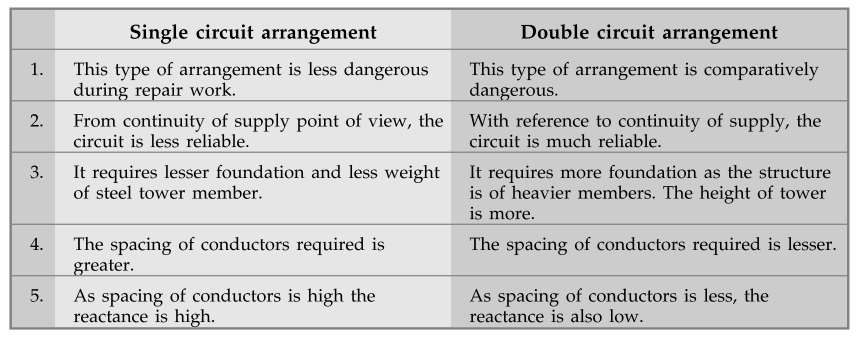

The comparison of Single circuit and         double circuit is as given below.

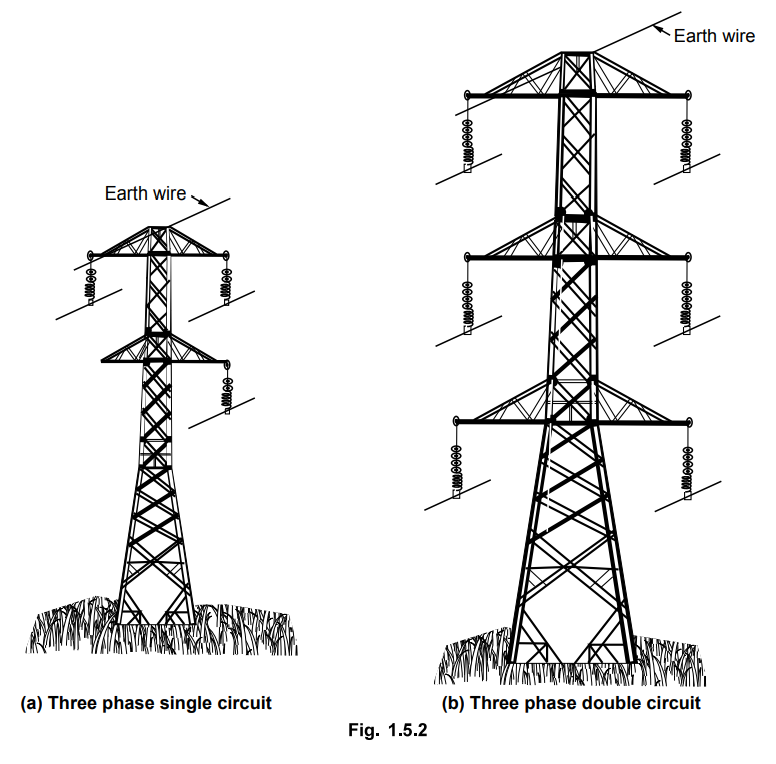

ii) Three phase circuits : The three phase circuits are also having single circuit or double circuit arrangement. In single circuit arrangement of three phase circuit, the conductors are arranged either at the comers of an equilateral triangle or at the comers of right angled triangle for unequal distance between the conductors. The Fig. 1.5.2 shows various types of arrangements of three phase circuits.

Review Questions

1. Explain the different methods of arrangement of conductors.

2. Compare single circuit and double circuit arrangements of conductors.
