• VHDL supports a variety of data types. The type of a variable, signal, or constant determines the operators that are predefined for that object as well as the range of values that it can take on. The VHDL data types can be broadly classified into following five data types :

1. Scalar types : The scalar types include numeric data types and enumerated data types. The numeric types consist of integer, floating point (real) and physical types. Bit, Boolean and character are all enumerated types.

2. Composite types : Array and record types are composite data types. The values of these types are collection of their elements.

3. Access types : They are pointers; they provide access to objects of a given data type.

4. File type : They provide access to object that contain a sequence of values of a given type.

5. Other types : They include the data types provided by the several external libraries.



1. Scalar Types

• We have seen that, the scalar types consist of enumeration types, integer types, physical types, and floating point types. Enumeration, data types and integer types are called discrete types. On the other hand, integer types, floating point types and physical types are called numeric types.

Integer type

• As the name indicates, it covers all integer values, the values can be positive or negative. The default range of Integer is -2147483647 to +2147483647. However, user can specify a shorter range by using the predefined word range. The shorter range may require less bits to represent the number when binary encoded. We can define the subtype of base type whose range must be wholly contained within the bounds of the range of base type.

Examples :

type num is integer;

type long is range -32768 to 32768; -- 16-bit binary encoding.

type short is range 0 to 255; -- 8-bit binary encoding.

subtype shorter is short range 0 to 31; -- 5-bit binary encoding.

subtype shortest is short range 0 to 15; -- 4-bit binary encoding.

Note : The encoding of integers in a binary format means that all ranges are rounded up to the nearest power of two. This means that if shorter had been declared as :

subtype shorter is short range 0 to 15;

• Then the object is synthesized into 4 wires. Objects declared type of type integer without a range constraint will be synthesized into 32 wires.

Real (floating point) type

Example of integer object declaration :

Port (Il : in integer ;

O1 : out integer);

• Floating point type definition defines both a type and subtype of that types. The default range of floating point is -1E38 to + IE38. Like integer type, here also we can specify the shorter range by using the predefined word range.

Examples :

type Real_data is real;

type Voltage is range to -12.0 to +12.0;

subtype min voltage is range -5.0 to +5.0;

Example of real object declaration :

Port (Il : in real ;

O1 : out real);

Enumerated types

Bit, Boolean, Character and severity_level are the enumerated types. These are defined in a library such as std or ieee.

Bit data type allows only two values 0 or 1. It is used to describe a signal that takes only l(High) or 0(Low). The type Boolean has two values, True(l) or False(0). Both True and False are predefined words.

The type character constitutes the 128 characters of the ASCII character set. These character values are called character literals and are always written between two single quotes ('         ')• F°r example, 'A', ‘_’ ' 3 ' and so on.

An object with type severity can take one of four values ; note, warning, error or failure. This type is typically used in assertion statements.

Examples :

type Bit is (’0’, 1’);

type Switch_level is (’0’, ‘1’, ‘x’);

Examples of enumerated type object declaration :

Port (Il : in bit;

O1 : out Boolean);

Physical type

• Values of a physical type represent measurements of some quantity. Any value of a physical type is an integral multiple of the base unit of measurement for that type. For example, time (e.g. second, millisecond, microsecond, etc.) and voltage (e.g., volt, millivolt, microvolt, etc.)

• A physical type definition defines both a type and a subtype of that type. Each unit declaration (either the base unit declaration or a secondary unit declaration) defines a unit name. Unit name declared in secondary unit declaration must be directly or indirectly defined in terms of integral multiples of the base unit of the type declaration in which they appear.

Examples :

type time is range -1E18 to 1E18

units

fs; - femtosecond

ps = 1000 fs; - picosecond

ns = 1000 ps; - nanosecond

us = 1000 ns; - microsecond

ms = 1000 us; - millisecond

sec = 1000 ms; - second

min = 60 sec; - minute

end units;

type distance is range 0 to IE 16

units

- base unit:

A; - angstrom

- metric lengths;

nm = 10 A; - nanometer

um     = 1000 nm; - micrometer (or micron)

mm = 1000 um; - millimeter

cm = 10 mm; - centimeter

m = 1000 mm; -  meter

km = 1000 m; - kilometer

- - English lengths :

mil = 254000 A; - mil

inch = 1000 mil;  - inch

ft = 12 inch;          - foot

yd = 3 ft; - yard

fm = 6 ft; - fathom

mi = 5280 ft;-  mile

lg = 3 mi; - league

end units;

x : distance; y : time; z : integer;

x := 5A + 13 ft - 27 inch; - arithmetic operations

y : = 3ns + 5 min; - on physical data type

z : = ns/ps;

x : = z  mi;

y : =  y/10;

• The arithmetic operations are predefined for all physical types. It is an error if the execution of such an operation cannot deliver the correct result (that is, if the value corresponding to the mathematical result is not a value of the physical type).

User-defined types

The user can define a type by using the predefined word type.

Example :

type Multi_level_logic is (low, high, rising, falling);

type arith_op is (add, sub, mul, div);

Here, multi_level_logic and arith_op are the user defined types. The variables declared using such data types can take values mentioned in the data type definition. For example,

Variable operation : arithop := sub;

Variable level : Multi_level_logic := high;

 2. Composite Types

• Composite types are used to define collection of values. These include both arrays of values (collection of values of a single type) and records of values (collection of values of the same or different types).

• An object of a composite type represents a collection of objects, one for each element of the composite object. A composite type may only contain elements that are of scalar, composite, or access types; elements of file types are not allowed in a composite type. Thus, an object of a composite type ultimately represents a collection of objects of scalar or access types, one for each non-composite subelement of the composite object.

Array types

• An array object is a composite object consisting of elements that have the same subtype. The name for an element of an array uses one or more index values belonging to specified discrete types. The value of an array object is a composite value consisting of the values of its elements.

• An array object is characterized by the number of indices (the dimensionality of the array), the type, position and range of each index and the type and possible constraints of the elements. The order of the indices is significant.

• A one-dimensional array has a distinct element for each possible index value. A multidimensional array has a distinct element for each possible sequence of index values that can be formed by selecting one value for each index (in the given order). The possible values for a given index are all the values that belong to the corresponding range; this range of values is called the index range.

Example :

type num is integer ;

type numarr is array (7 downto 0) of num;

-- numarr is an array of 8 integer numbers

type my_word is array (0 to 31) of BIT;

-- a memory word type with an ascending

range

type datain is array (7 downto 0) of five_level_logic;

-- an input port type with a descending

range

-- Example of unconstrained array

declarations

type memory is array (integer range o) of myword;

-- a memory array type 

- Examples of array object declarations

signal dataline : datain ;

-- defines a data input line

variable mymemory : memory (0 to 2**^n-1);

-- defines a memory of 2ⁿ 32-bit words

string and bit_vector are the predefined array types, which are defined in package std.

The values of the predefined type string are one-dimensional arrays of the predefined type character, indexed by values of the predefined subtype positive;

subtype positive is integer range 1 to integerhigh;

type string is array (positive range o) of character;

The values of the predefined type bit_vector are one-dimensional arrays of the predefined type BIT, indexed by values of the predefined subtype natural :

subtype natural is integer range 0 to integerhigh;

type bit_vector is array (natural range <>) of bit;

- Examples of string and bit-vector object declaration

variable message : string (1 to 17) := "This is a message";

signal low_bite : bitvector (0 to 7);

Record type

• A record type is a composite type, objects of which consist of named elements. The value of a record object is a composite value consisting of the values of its elements. The record type is analogous to the record datatype in pascal and the struct declaration in C.

• A record type definition creates a record types; it consists of the element declarations, in the order in which they appear in the type definition.

Example :

type DATE is

record

DAY : INTEGER range 1 to 31 ;

 MONTH : MONTH_NAME;

YEAR : INTEGER range 0 to 4000;

end record;



3. Access Types

• Values belonging to an access type are pointers to a dynamically allocated object of some other type. These are similar to pointers in pascal or C languages.

Example :

type ptr is access date;

- ptr is an access type whose values are

- addresses that point to object of type date.



4. File Type

• File types are used to define objects representing files in the host system environment. The value of a file object is the sequence of values contained in the host system file.

type_file_type_name is file of type_name;

• The type mark in a file type definition defines the subtype of the values contained in the file. The type mark may denote either a constrained or an unconstrained subtype. The base type of this subtype must not be a file type or an access type. If the base type is a composite type, it must not contain a subelement of an access type. If the base type is an array type, it must be a one-dimensional array type.

Examples :

file of string - Defines a file type that can contain

- an indefinite number of strings

file of natural - Defines a file type that can contain

- only non-negative integer values

• Three operations are provided for objects of a file type. Given the following file type declaration :

type FT is file of TM :

• Where type mark TM denotes a scalar type, a record type, or a constrained array subtype, the following operations are implicitly declared immediately following the file type declaration :

procedure read (F : in FT; value : out TM);

procedure write (F : out FT; value: in TM);

function endfile (F: in FT) return boolean; 

• Procedure read retrieves the next value from a file. Procedure write appends a value to a file. Function endfile returns False if a subsequent read operation on an input file can retrieve another value from the file; otherwise it returns true. Function endfile always returns true for an output file.



5. Other Types

• There are several other types provided by external library, IEEE. This library contains a std_logic_1164 package which supports more types. Let us discuss them.

Std_logic type

• std_logic is a data type defined by IEEE standard 1164, and defined in the file ieee.vhd.std_logic is an enumerated type. This logic has nine values as listed in Table. 10.6.1.

• The std_logic data type is very important for both simulation and synthesis. Std_logic includes values that allow us to accurately simulate such circuit conditions as unknowns and high-impedance stages. For synthesis purposes, the high-impedance and don't care values provide a convenient and easily recognizable way to represent three-state enables and don't care logic. For synthesis, only the values 0, 1, z and have meaning and are supported.

std_logic_vector type

The type stdjogic_vector represents an array of bits whose type is stdjogic.

Example :

Port (I : in stdjogic_vector (7 downto 0);

O : out bit);

In the above example, port I is declared as type std_logic_vector which has 8-bits.

Signed

The type signed is a numeric type. It is declared in the external package numeric_std and represents signed integer data in the form of an array. The left most bit of objects of signed type represents sign and such objects are represented in 2's complement form, let us see the object definition.

variable difference : signed (4 downto 0) := 10011;

In the above definition, the variable difference is declared as signed type and has 5-bits with initial value 10011, or - 13.

Unsigned

The type unsigned represents integer data in the form of an array of stdjogic and it is declared in the external package numeric_std. Let us see the object definition variable num: unsigned (4 downto 0) := 10011; In the above definition, the variable num is declared as unsigned type and has 5-bits with initial value 10011, or 19.



6. Operation in VHDL

VHDL includes the following kinds of operators :

• Logical

• Relational

• Arithmetic

• Shift and Rotate

a. Logical Operators

Logical operators, when combined with signals and/or variables, are used to create combinational logic. VHDL provides the logical operators as shown in the Table 10.6.2.

• These operators are defined for the types bit, std_logic and Boolean, and for one-dimensional arrays of these types (for example, an array of type bit_vector or std_logic_vector).

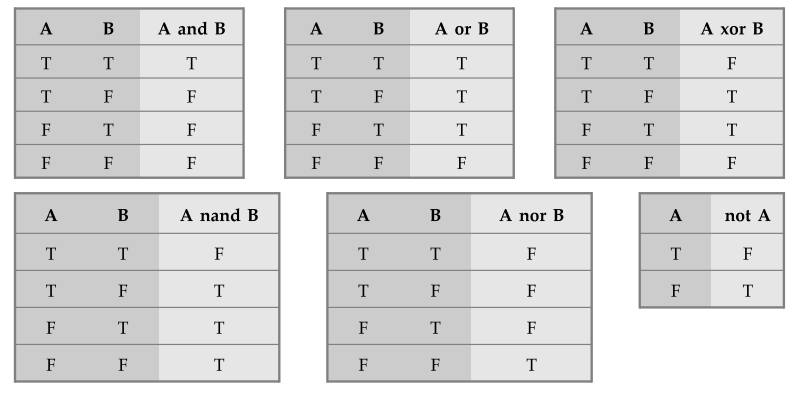

• The effects of the logical operators are defined in the following tables. The symbol T represents TRUE for type BOOLEAN, T for type BIT; the symbol F represents FALSE for type BOOLEAN, 'O' for type BIT.

b. Relational Operators

• Relational operators are used to create equality or magnitude comparison functions. VHDL provides the relational operators as shown in the Table 10.6.3.

• The following statement demonstrates the use of some of the above relational operators :

if (A/=B) then ...

A is compared to B. If A is equal to B, then the value of the expression (A/= B) is false (0); otherwise it is true (1).

if (A > B) then ...

If A is greater than B, the value of the expression

(A > B) is true (1); otherwise it is false (0).

Note : The operands of each relational operator must be of the same type. The result type of each relational operator is the predefined type Boolean.

c. Arithmetic Operators

• Arithmetic operators are used to create arithmetic functions. Arithmetic operators provided by VHDL are listed in Table 10.6.4.

d. Shift and Rotate Operators

• These operators shift or rotate the bits of the operand right or left by some specified number of bit positions. There are two types of shift operators : Logic shift operator and arithmetic shift operator. When logical shift operator is used, the vacant positions created due to shift operation are filled with zeros. On the other hand, when arithmetic right shift operator is used the vacant positions created due to shift operation are filled with MSB (sign bit). The arithmetic left shift is same as the logical left shift.

• The Table 10.6.5 shows the shift and rotate operators supported in VHDL. To understand the function of these operators, assume that operand A is the 4-bit vector with value 1101.

Note :

• Shift left by 1 bit performs multiplication by two while shift right by 1 bit performs division by two.

• With rotate operation we can restore the original contents after one complete cyclic rotation. This is not the case with shift operation.

e. Operators Precedence

• The precedence of operators is shown in Table 10.6.6. The operators belongs to same row have the same precedence level. Operators are listed in order of decreasing precedence.

• Operators of higher precedence are associated with their operands before operators of lower precedence. For a sequence of operators with the same precedence level, the operators are associated with their operands in textual order, from left to right. The precedence of an operator is fixed and may not be changed by the user, but parentheses can be used to control the association of operators and operands.
