SCHOTTKY DIODE
Definition:
It
is a junction formed between a metal and n-type semiconductor.
When
the metal has a higher work function than that of n-type semiconductor then the
junction formed is called schottky diode. The Fermi level
of the semiconductor is higher (since its work function is lower) than the
metal.

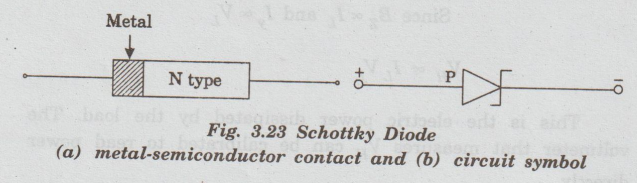

Fig.
3.23 shows schottky diode and its circuit symbol.
The
electrons in the conduction level of the semiconductor move to the empty energy
states above the Fermi level of the metal.

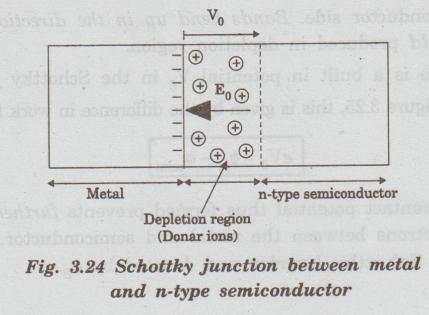

This
leaves a positive charge on the semiconductor side and a negative charge (due
to the excess electrons) on the metal side as shown in figure 3.24. This leads
to a contact potential.
When
a Schottky junction is formed between metal and semiconductor, Fermi level
lines up. Also a positive potential is formed on the semiconductor side.

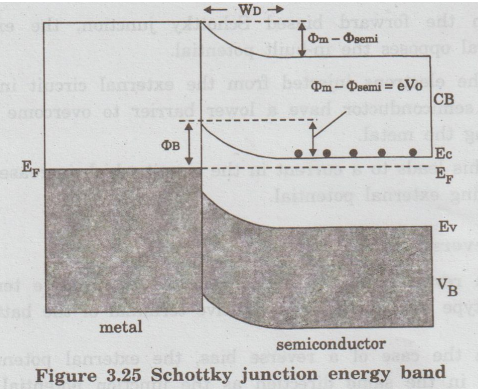

The
formation of a depletion region of width WD within the semiconductor
is shown in figure 3.25.
Because the depletion region extends within a certain depth in the semiconductor, there is bending of the energy bands on
the
semiconductor side. Bands bend up in the direction of the electric field
produced in depletion region.
There
is a built in potential Vo in the Schottky junction. From the figure 3.25, this
is given by the difference in work functions.
eV0
= ϕm - ϕsemi
The
contact potential thus formed prevents further motion of the electrons between
the metal and semiconductor. This is called the Schottky barrier and
denoted by ϕB.
Working
The
behaviour of the schottky diode is further studied by biasing (applying
voltage). The voltage is applied in two ways
(a)
Forward bias
(b)
Reverse bias
(a)
Forward bias
In
this bias, metal is connected to positive terminal and n-type semiconductor is
connected to negative terminal of the battery.
In
the forward biased Schottky junction, the external potential opposes the
in-built potential.
The
electrons injected from the external circuit into the n-type semiconductor have
a lower barrier to overcome before reaching the metal.
This
leads to a current in the circuit which increases with increasing external
potential.
(b)
Reverse bias
In
reverse bias, metal is connected to negative terminal and n-type semiconductor
to positive terminal of the battery.
In
the case of a reverse bias, the external potential is applied in the same
direction as the junction potential. This increases the width of depletion
region further and hence there is no flow of electron from semiconductor to
metal.
So
a Schottky junction acts as a rectifier ie. it conducts in forward bias but not
in reverse bias.
The

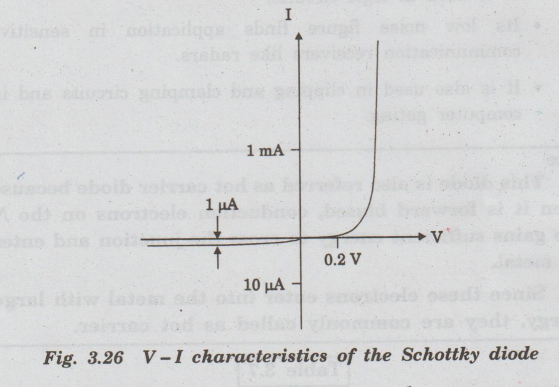

V-I characteristics of the junction is shown in figure 3.26. There is an
exponential increase in current in the forward bias while there is a very small
current in reverse bias.
•
In schottky diode, stored charges or depletion region is negligible. So a
schottky diode has a very low capacitance.
•
In schottky diode, the depleting region is negligible. So the schottky
diode will immediately switch from ON to OP OFF state (fast recovery time).
The
depletion region is negligible in schottky diode. So applying a small voltage
is enough to produce large current. It has high efficiency.
•
It operates at high frequencies.
•
It produces less noise.
•
Schottky diode can be used for rectification of signals of loubnofrequencies
even exceeding 300 MHz.
•
It is commonly used in switching device at frequencies of 20 GHz.
•
It is used in radio frequency (RF) applications.
•
It is widely used in power supplies.
•
It is used to detect signals.
•
It is used in logic eircuits.
•
Its low noise figure finds application in sensitive communication receivers
like radars.
•
It is also used in clipping and clamping circuits and in computer gating.
Note
This diode is also referred as hot carrier diode because when it
is forward biased, conduction electrons on the N side gains sufficient energy
to cross the junction and enter the metal.
Since these electrons enter into the metal with large energy,
they are commonly called as hot carrier.

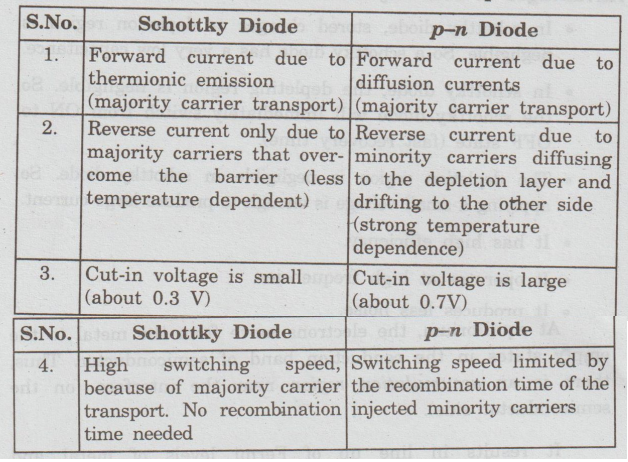

Table
3.7
Differences
between Schottky diode and p-n diode
