Electric Circuit Analysis: Unit I: a. Introduction
Open circuit (oc)
Explanation with circuit Diagram, Illustration
Open circuit between any terminals can be defined in terms of the figure below
OPEN
CIRCUIT (OC)
Open
circuit between any terminals can be defined in terms of the figure below:
The
current in an open circuit is always zero regardless of the voltage across it.
Mathematically
i
= 0 and V(t) = ≠ 0, for open circuit.
Consider
the following 2 illustrations.

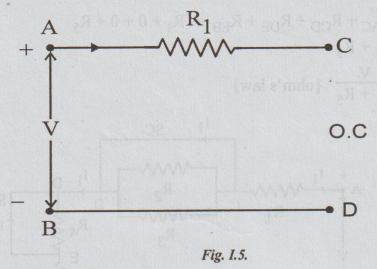

Illustration 3:
Refer the circuit given.
As
there is no closed circuit, current = 0.

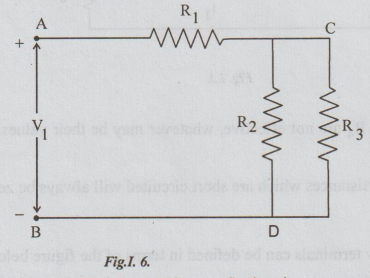

Illustration 4:
Consider the circuit given.
Suppose
that the resistance R3 is burnt (damaged), then it acts as an open
circuit.
As
a result, the circuit becomes as shown above. Therefore, the current flowing
through R1 and R2 will be the same. i.e., they are in
series. So, RT = R1 + R2
Hence,
current from source = V1 / R1 + R2
